A brief introduction to GraphQL

atomium graphql

A RESTful API is a de-facto standard to allow communication between applications, although GraphQL has become a popular alternative. Facebook built it for its mobile apps and open-sourced it in 2015.

From the user-client perspective, GraphQL is similar to RESTful, they work as an entry point between different applications, but GraphQL is slightly different, and because of this, this technology has a reason to be.

GraphQL vs RESTful API

GraphQL and RESTful have the same foundation. They both run over HTTP, and they have the idea of resource, but, in REST, each endpoint is a single resource, while in GraphQL there is only a single endpoint.
GraphQL is not about resource state management, but about separating read operations (queries) from write operations (mutations). This is known as the Command Query Separation pattern.
In REST, the server determines the shape and size of a resource, in GraphQL depends on the user's needs.

One endpoint: POST /graphql

A REST API exposes one URL per resource (GET /offers/10, GET /providers/31, POST /offers...). A GraphQL API usually exposes a single URL, and the request body says what you want:

curl -X POST http://localhost:4000/graphql \
  -H 'Content-Type: application/json' \
  -d '{"query": "query offerQuery($id: ID!) { offer(id: $id) { name type } }", "variables": {"id": "10"}}'
{"data":{"offer":{"name":"Product A","type":"Drink"}}}

$id is a variable: the query text stays the same and only the values change. When something fails, the response carries an errors key next to data.

Over-fetching and under-fetching

Imagine a screen that shows an offer and the name of its provider. With REST, GET /offers/10 returns the whole resource:

{
  "id": 10,
  "name": "Product A",
  "type": "Drink",
  "price": 250,
  "provider_id": 31
}

You get fields you don't need, like price (over-fetching), and you still lack the provider's name, so you need a second call to GET /providers/31 (under-fetching). With GraphQL, a single query asks for exactly those fields.

How to manage a GraphQL schema?

A schema contains objects, every object has different parameters, and those parameters can be properties or even sub-objects. You write it in the Schema Definition Language (SDL):

type Provider {
  id: ID!
  name: String!
  offers: [Offer!]!
}

type Offer {
  id: ID!
  name: String!
  type: String!
  price: Int!
  provider: Provider!
}

type Query {
  offer(id: ID!): Offer
  offers(type: String): [Offer!]!
}

type Mutation {
  addOffer(name: String!, type: String!, providerId: ID!): Offer!
}

! means the field can't be null, and [Offer!]! is a list of offers. Query and Mutation are the entry points: every request starts from one of their fields.

If you want to filter an object(s) from a specific Type, you pass arguments in parentheses, like offer(id: "10") or offers(type: "Drink"). The output is a JSON response.

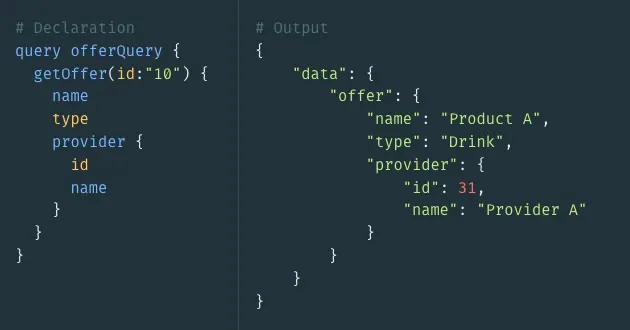

Queries

Queries play the role of GET requests. That means you can only fetch data.

query offerQuery {
  offer(id: "10") {
    name
    type
    provider {
      id
      name
    }
  }
}

The response has the same shape as the query:

{
  "data": {
    "offer": {
      "name": "Product A",
      "type": "Drink",
      "provider": {
        "id": "31",
        "name": "Provider A"
      }
    }
  }
}

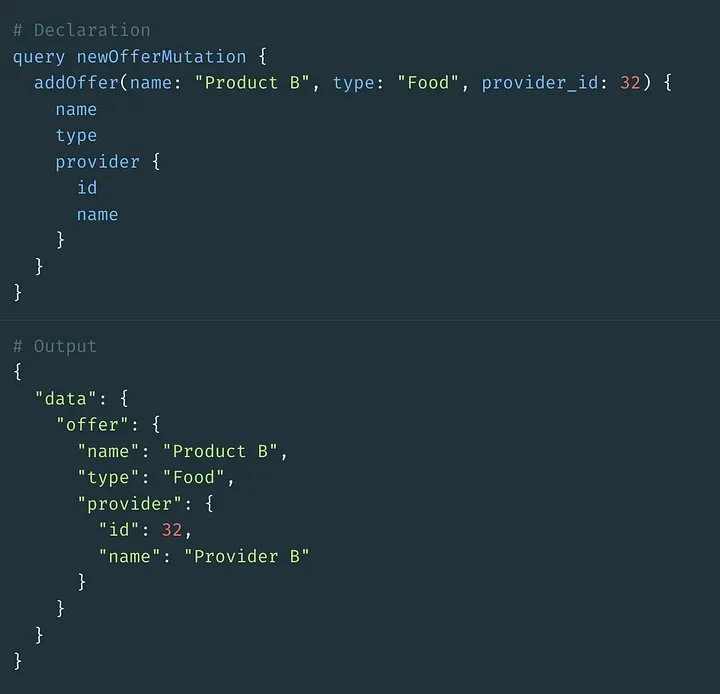

Mutations

Mutations play the role of POST, PUT, PATCH, and DELETE. That means you can mutate the data model, and persist it in the database by creating, updating or removing elements.

mutation newOfferMutation {
  addOffer(name: "Product B", type: "Food", providerId: "32") {
    id
    name
    type
    provider {
      id
      name
    }
  }
}
{
  "data": {
    "addOffer": {
      "id": "11",
      "name": "Product B",
      "type": "Food",
      "provider": {
        "id": "32",
        "name": "Provider B"
      }
    }
  }
}

In a mutation, the addOffer() is the instruction you will perform into the system, though the body of the mutation is the response you want to receive.

Both queries and mutations travel as a POST to the same endpoint (some servers also accept queries over GET). The keyword at the start tells the server which one it is.

The trade-offs

HTTP caching is harder

With REST, GET /offers/10 is a URL that browsers, CDNs and reverse proxies can cache with standard headers. With GraphQL, requests are usually a POST to the same URL, and shared caches don't store POST responses in practice. Caching moves to the client (Apollo Client and Relay keep a normalized cache) or to the server.

The N+1 problem

Every field has a resolver, a function that loads its value. Ask for a list of offers with their provider:

{
  offers {
    name
    provider {
      name
    }
  }
}

A naive server runs one query for the offers, and then one query per offer to load its provider:

SELECT * FROM offers
SELECT * FROM providers WHERE id = 31
SELECT * FROM providers WHERE id = 32
SELECT * FROM providers WHERE id = 33

The fix is batching: collect the provider IDs first and load them in a single SELECT * FROM providers WHERE id IN (31, 32, 33). DataLoader does this in JavaScript, and graphql-php offers GraphQL\Deferred for the same job.

Limit query depth and complexity

Clients can write any query the schema allows. As Provider has offers and Offer has provider, a request can nest as deep as it likes, and every level multiplies the rows your server loads:

{
  offers {
    provider {
      offers {
        provider {
          offers {
            name
          }
        }
      }
    }
  }
}

Set a maximum depth and a complexity budget before you go to production. In graphql-php:

use GraphQL\Validator\DocumentValidator;
use GraphQL\Validator\Rules\QueryComplexity;
use GraphQL\Validator\Rules\QueryDepth;

DocumentValidator::addRule(new QueryDepth(3));
DocumentValidator::addRule(new QueryComplexity(100));

The query above is now rejected with Max query depth should be 3 but got 4.

When REST is the better fit

GraphQL shines when several clients (web, iOS, Android) need different shapes of the same data. REST is usually the better choice when:

  • The API is simple CRUD and every client needs the same data.
  • You rely on HTTP caching and CDNs, like a public catalog or a content site.
  • You serve files: uploads and downloads fit plain HTTP better.
  • The team can't invest in the extra tooling (batching, limits, schema reviews).

To write queries and mutations effectively, you need to understand the schema and the relations between types. The good news is that the schema documents itself: tools like GraphiQL read it through introspection and autocomplete your queries.

graphql logo

The GraphQL documentation covers more advanced topics like enums, interfaces, entity management, and schema design. Worth checking out if you're building a GraphQL API from scratch.
